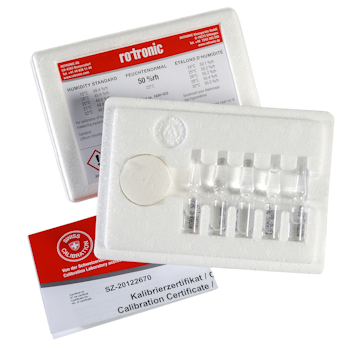

Salt solutions

Equipped with Rotronic humidity standards, a suitable calibration device and the HW4 software, it is easy to calibrate and adjust probes on-site at your premises. It is also possible to calibrate and adjust probes with the handheld instrument HP32-A (HW4 software is not necessary).

Calibration devices

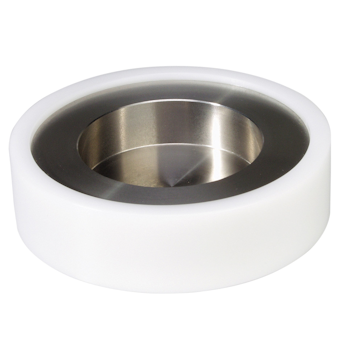

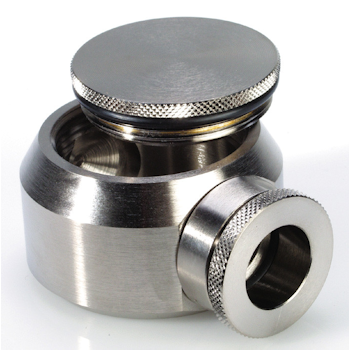

Rotronic calibration devices are small, airtight chambers that fit Rotronic probes precisely. The lower part of the device consists of a screw-on lid into which the humidity standard is poured on to an absorbent textile pad. The specified humidity is generated in the calibration device after a stabilization period. High humidity values require a longer stabilization period. The probe can then be calibrated or adjusted by comparison with the reference value of the humidity standard.

Applications

Calibration and adjustment of Rotronic probes (third-party probes also possible).

规格：

Order Code Salt Solution Nominal value [%rH] Measurement uncertainty at 23°C

EA00-SCS 0.5 ±0.3 %rH

EA10-SCS 10 ±0.3 %rH

EA35-SCS 35 ±0.4 %rH

EA80-SCS 80 ±0.7 %rH
